Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Orzecznictwo
Chiny Dongguan Liyi Environmental Technology Co., Ltd. Certyfikaty
Chiny Dongguan Liyi Environmental Technology Co., Ltd. Certyfikaty
Opinie klientów
Otrzymaliśmy maszyny wczoraj! Wspaniale było pracować z wami! W załączeniu list z podziękowaniami dla Ciebie i Twojego szefa, który został podpisany przez mojego CEO.

—— Барабан Григорий

Dobrze spoglądaliśmy na glossmeter i lubimy to, co widzimy. Wyniki są zbliżone do kalibracji specyfikacji. Kochamy to.

—— Dave Brewer

Otrzymaliśmy maszynę, dziękuję za cierpliwość ze mną w tym czasie, jeszcze jej nie używam, ale jestem pewien, że będzie w porządku.

—— Jose Zikasky

Uwielbiam twoją obsługę klienta, szybką reakcję i bycie rozważnym przez cały czas. Maszyna dostarczona na czas. Dziękuję Ci.

—— Elizebath Roberts

Im Online Czat teraz

Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed
Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Duży Obraz :  Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Zapłata:
Minimalne zamówienie: 1

Liyi Universal Testing Machine with 1200mm Effective Pull Space 220V/50HZ Power and 0.5~1000mm/min Test Speed

Opis
Dokładność: 0,5% Moc: 750 W.
Klasa ochronna: IP56 Woltaż: 380 V, 220 V, 240 V, 110 V
Pojemność: 1,2,5,10,20,50,100,500,500,1000,2000 kg (5000 kg, dostosowywanie 10t) Skuteczne przestrzeń ciągnąca: 1200 mm (zawierają uchwyty)
Waga: 145 kg Zasilacz: 220 V/50 Hz
Prędkość testu: 0,5 ~ 1000 mm/min Zakres testów: 400 mm max
Rezolucja: 1/250 000 Silnik: Silnik Panasonic Servo
Maksymalna pojemność obciążenia: 5000 kg Wymuś błąd względny: ± 0,5%
Udar testowy: 1200 mm
Podkreślić:

1200mm Effective Pull Space Universal Testing Machine

,

220V/50HZ Power Tensile Testing Machine

,

0.5~1000mm/min Test Speed UTM

Liyi UTM Tension Compression Peel Strength Universal Tensile Testing Machine

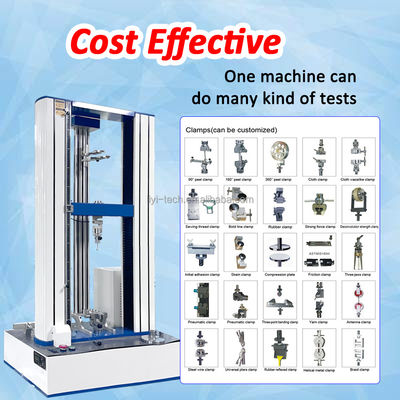

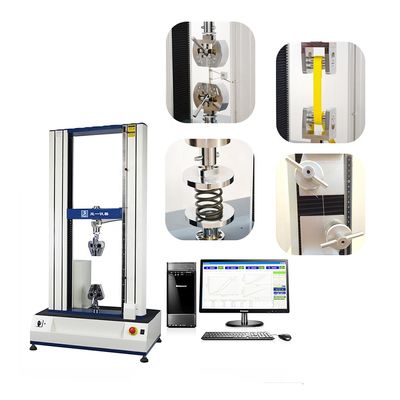

The Liyi UTM Universal Tensile Testing Machine is designed for comprehensive material testing, including tensile strength, compression, elongation, stripping force, tear strength, and bending strength measurements for both finished and semi-finished products.
Technical Specifications

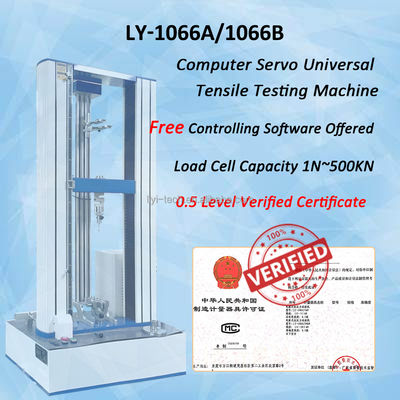

Model LY-1066A LY-1066B

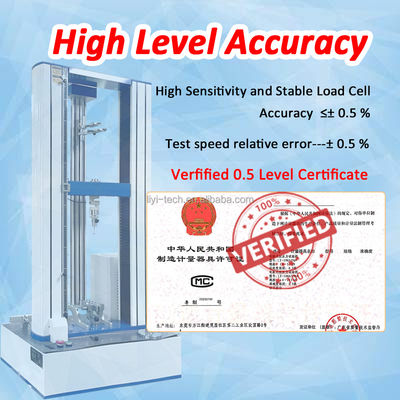

Accuracy Class 0.5 (with Verified Certificate)
Optional Load Cell 1,2,5,10,20,50,100,200,500,1000,2000,5000kg
Max Load Capacity 5000KG 2000KG
Resolution 1/250,000 1/150,000
Force Relative Error ±0.5%
Test Speed Range 0.1~500mm/min 50~500mm/min
Motor Panasonic Servo Motor AC Inverter Motor
Test Stroke (contain clamps) 1200mm
Product Images
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.
Our product range includes simulated environmental testers, plastic and rubber testers, and other material testing equipment. Based in Dongguan, Guangdong province (China's manufacturing center), we also maintain an office in Kunshan, Jiangsu province to better serve Eastern China markets.
Frequently Asked Questions
Are you the manufacturer? What after-sales service and warranty do you offer?
Yes, we are a professional manufacturer of testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during this period and offer technical support via email or video chat, with solutions typically provided within 24-48 hours of problem identification.
What is your standard delivery time?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can accommodate urgent requests with special arrangements.
Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to customer requirements, including OEM/ODM services with your logo on the equipment.
How do I install and use the machine?
Most machines are shipped fully assembled - just connect the power cable to begin use. We provide English operation videos via email and can assist with on-site installation when necessary.
