Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Orzecznictwo
Chiny Dongguan Liyi Environmental Technology Co., Ltd. Certyfikaty
Chiny Dongguan Liyi Environmental Technology Co., Ltd. Certyfikaty
Opinie klientów
Otrzymaliśmy maszyny wczoraj! Wspaniale było pracować z wami! W załączeniu list z podziękowaniami dla Ciebie i Twojego szefa, który został podpisany przez mojego CEO.

—— Барабан Григорий

Dobrze spoglądaliśmy na glossmeter i lubimy to, co widzimy. Wyniki są zbliżone do kalibracji specyfikacji. Kochamy to.

—— Dave Brewer

Otrzymaliśmy maszynę, dziękuję za cierpliwość ze mną w tym czasie, jeszcze jej nie używam, ale jestem pewien, że będzie w porządku.

—— Jose Zikasky

Uwielbiam twoją obsługę klienta, szybką reakcję i bycie rozważnym przez cały czas. Maszyna dostarczona na czas. Dziękuję Ci.

—— Elizebath Roberts

Im Online Czat teraz

Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Duży Obraz :  Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Szczegóły Produktu:
Miejsce pochodzenia: Guangdong, Chiny
Nazwa handlowa: Liyi
Numer modelu: Liyi
Zapłata:
Minimalne zamówienie: 1

Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing

Opis
Moc: 3kW Woltaż: 220 V, 380 V, 240 V, 110 V
Pojemność: 1,2,5,10,20,50,500 200 500 500 kg Opcjonalnie Rezolucja: 1/250 000
Dokładność: ± 0,5% Zakres prędkości: 0,5 ~ 500 mm / min
Udar: 650 mm (z wyłączeniem zacisku) Wymiary: 58*58*125 cm
Przestrzeń testowa: 120 mm Maksymalna pojemność obciążenia: 500 kg
Wymuś błąd: ± 0,5% Prędkość testu: 0,1 ~ 500 mm / min
Typ silnika: Silnik sevora Panasonic Udar testowy: 850 mm (zawierają zaciski)

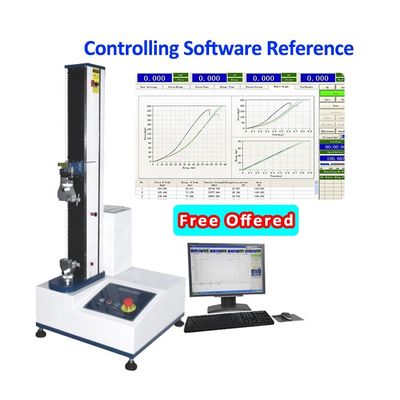

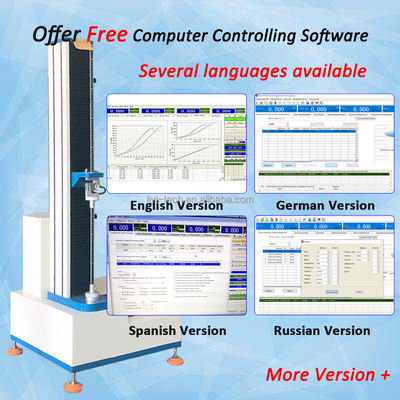

Kontrola operacji: Kontrola komputera
Podkreślić:

220V/380V Voltage Universal Testing Machine

,

850mm Stroke Universal Testing Machine

,

1/250

,

000 Resolution Universal Testing Machine

Liyi Tensile Test Equipment - Universal Testing Machine
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 0
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 1
Product Overview

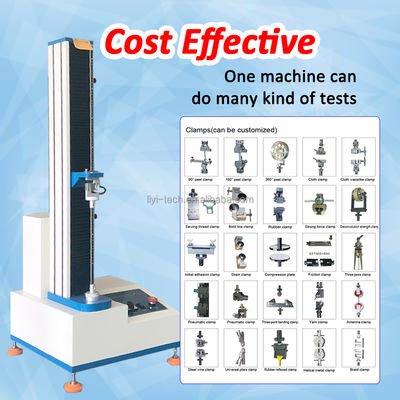

The Liyi universal testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling tests on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board and finished products.
Design Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Technical Specifications

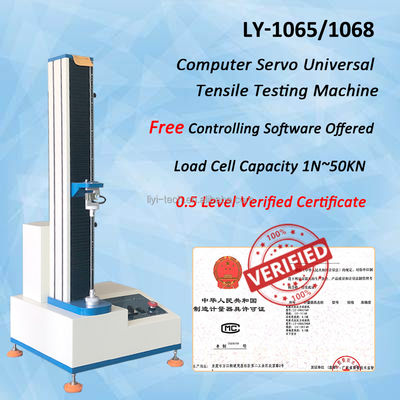

Model LY-1065 LY-1068

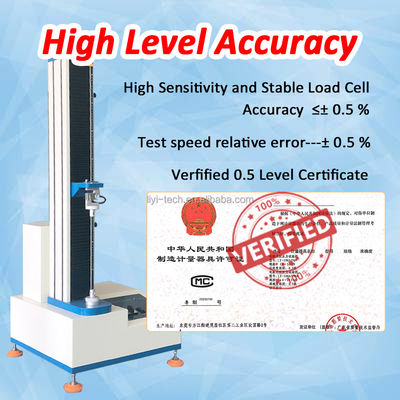

Accuracy Class 0.5 0.5
Max Load Capacity 500KG -
Optional Load Cell 1,2,5,10,20,50,100,200,500kg -
Resolution 1/250,000 1/150,000
Force Relative Error ±0.5% ±0.5%
Test Speed Range 0.1~500mm/min 50~500mm/min
Motor Panasonic Servo Motor AC Inverter Motor
Test Stroke (Contain Clamps) 850mm -
Product Details
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 2
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 3
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 4
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 5
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 6
Universal Testing Machine with 220V/380V Voltage 850mm Stroke and 1/250,000 Resolution for Precise Material Testing 7
Company Profile

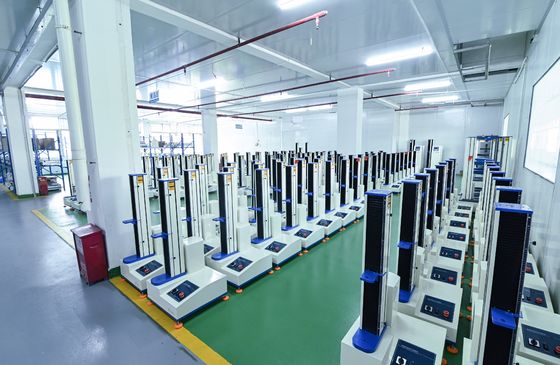

Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a complete quality management system, we serve customers in over 150 countries.
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty after shipment, including free maintenance. For urgent issues, we provide solutions within 24-48 hours through email or video support.
2. What's the delivery time?
Standard machines typically ship within 15-20 working days after deposit. We can expedite for urgent orders and offer special arrangements when needed.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements, including OEM services with your logo on the equipment.
4. How do I install and use the machine?
We provide English operation videos with each machine. Most units ship fully assembled - just connect power to begin testing. For complex installations, we offer on-site assistance.
